Name: TIG Welding Foil Sheet Winder Automatic Transformer Foil Winding Machine
Brand: Suzhou Tronsing Technology Co., Ltd
SKU: BRJ1400-2
Price: 30,000.00 USD
Availability: InStock

TIG Welding Foil Sheet Winder Automatic Transformer Foil Winding Machine

1 КОМПЛЕКТ

MOQ

лично переговорить

цена

Характеристики Галерея Характер продукции Спросите цитату

Характеристики

имя: машина замотки фольги трансформатора

Использование: фольга для намотки

Главная сила: 22кВт

Скорость обмотки: 0 | 18 rpm

Cu толщина фольги: 0.2 ~ 2,0 мм

Аль -фольга: 0,3 | 3.0mm

Фольга декойлер: 2 комплекта

Гарантия: 12 месяцев

Выделить:

TIG welding foil winder machine

automatic transformer foil winder

foil winding machine with warranty

Основная информация

Место происхождения: Китай

Фирменное наименование: STT

Сертификация: CE

Номер модели: BRJ1400-2

Оплата и доставка Условия

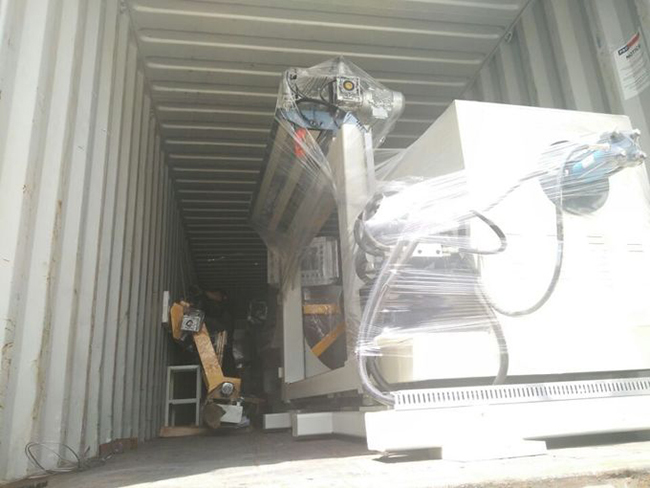

Упаковывая детали: Мореходная упаковка

Время доставки: 45 дней

Условия оплаты: Т/Т, Л/К

Поставка способности: 100 комплектов в год

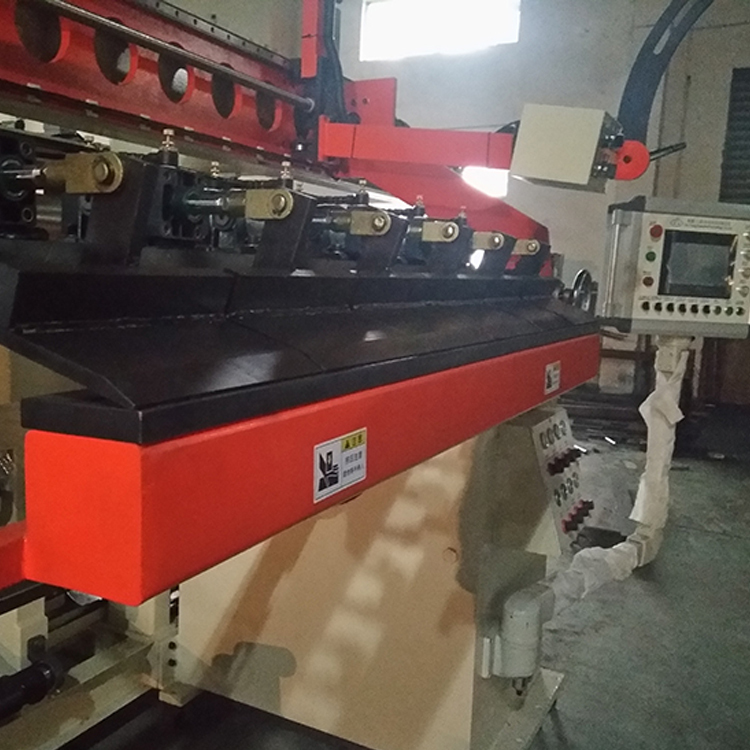

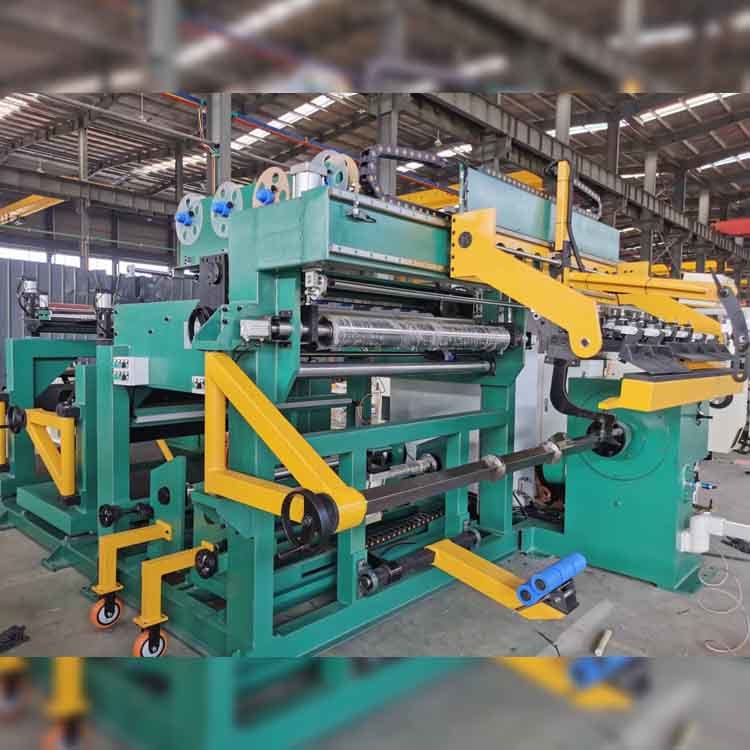

Галерея

TIG Welding Foil Sheet Winder Automatic Transformer Foil Winding Machine

Характер продукции

TIG Welding Foil Sheet Winder Automatic Transformer Foil Winding Machine

The BRJ1400-2 Transformer Foil Winding Machine is a specialized industrial device designed for manufacturing transformers and similar products by precisely winding conductive foil materials, typically aluminum or copper foil, instead of traditional round wire. This advanced machine incorporates a TIG welding unit for welding foil and bus bar connections and features a PLC-based control system for precision operation.

Key Features

The transformer foil winding machine offers slow starting capability, smooth running operation, and high torque performance, ensuring reliable and efficient winding processes.

Main Components

Main frame
Winding unit
Foil decoiler
Insulation decoiler
End-filling strip feeder
Cleaning system
Cutting system
Foil deburring system
Edge alignment system
Automatic welding unit
Electronic control system
Pneumatic system

Technical Specifications

Standard specifications for the BRJ1400-2 Transformer Foil Winding Machine are listed below. Custom configurations are available upon request.

Parameter	Specification
Maximum Foil Width	1,400mm
Max. Finished Coil OD.	1,000mm
Finished Coil Shape	Oval, round and rectangular
Conductor Foil Material	Copper or Aluminum
Maximum Conductor Material OD.	Φ1,000mm
Conductor Material ID.	Φ500mm
Foil Decoiler Number	2 pcs
Foil Decoiler Expanding Range	Φ480 ~ 520mm
Max. Coil Weight	2,500KG
Welding Mode	TIG
Cutting Mode	Electric disc shear
Insulation Decoiler Number	2 pcs
Max. Insulation Material OD.	Φ400mm
Insulation Material ID.	Φ76mm
End-filling Strip Feeder	8 pcs
Edge Alignment System	Photoelectric sensing
Control System	PLC
Counting Range	0 - 9999.9
